ADT-HC6500 Popular Gantry type CNC Flame/Plasma Controller | £1650.00 plus VAT

ADT-HC6500 Popular Gantry type CNC Flame/Plasma Controller | £1650.00 plus VAT

The ADT-HC6500 is a 10.4 inch display screen CNC Flame/Plasma controller, with strong anti-interference properties and the ability to control 2 or more of Hypertherm plasma sources without any interference. This Plasma CNC controller has passed CE and IS9001 certificates.

£1650.00

Prices are NOT inclusive of VAT

  • ARM9 industrial Processor, embedded system of highly cost performance;
  • 10.4 Inch industrial Colorful LCD display;
  • 2-4 Axis step/servo motor control;
  • Multi-language compile;
  • Support Wireless MPG;
  • Support capacitive/lilasma torch height controller;
  • Support Multi-gun running simultaneously, and Axis dual drive;
  • Single program can store 50000 lines of instructions and processing code;
  • Software & hardware Alarm function, user friendly & safety operation;
  • Customized software by user’s request;
  • One-key storage & restore function.


Components:
Controller + Data line +Connectors

Optional parts:
Nesting Software + Wireless MPG ADT-HC4A

Software Function:

  • Perfect flame / plasma cutting processes;
  • Support numerous functions, including time delay, preheating, perforating, changing nozzle, moving parts, lift adjustment, displacement perforating, partial image zoom-in, and view;
  • Perforation point selection is supported;
  • With suspended function; it can go back to the suspended position and continue carrying out the program if there is movement after the pause;
  • Track continuous backing function is provided;
  • With plasma arcing detection, initial positioning, and turning signal control functions;
  • Break point recovery function, featuring power-off protection during the processing;
  • Graphic library contains a great number of part figures, which can be edited to generate programs automatically. Rectangle edge-sharing function is supported;
  • Figure processing functions enable it to carry out such functions on figure being processed as rolling, X and Y mirror, line selection, point selection, steel plate calibration, size, array, derangement, and zoom in/out;
  • Figure display function, capable of displaying real-time track;
  • Capable of programming; nest processing files and writing G code are adopted;
  • Perfect and stable file system; the USB disk can read file or folder directly, featuring convenient on-scene operation;
  • With diagnosis function, helping customers settle the machine problems quickly;
  • Capable of controlling 4 stepping/servo motors at the same time, double axes can be synchronous, or the 3rd and 4th axis functions can be developed once again according to the actual demand;
  • System default setup and restore functions can better protect the system parameters;
  • Enable to custom the input and output terminals to improve the system performance, benefiting the future maintenance;
  • User-defined M compound instruction code is supported to expand the processing technologies of the system;
  • Support input methods in many languages, which would be better to identify the file name;
  • User-friendly operating interface with wizard or menu function is adopted;
  • Perfect gap compensation function;
  • Flexible switching of locking and inching is supported;
  • 10.4 inch color LCD display, with user-friendly and easy-to-use operating interface.


Application environment:

  • Power supply: 88∼264VAC, 125∼373VDC;
  • frequency: 47∼63Hz;
  • Typical value: AC220V 50HZ;
  • Power consumption: No-load power consumption <15W;
  • Operating temperature: 0°C∼-60°C;
  • Storage temperature: -20°C∼80°C;
  • Operating humidity: 20%∼95%;
  • Storage humidity: 0%∼95% .

Hardware Function:

  • SANSUNG series S3C2410A processor (ARM9), primary frequency: 200MHz;
  • Adopt the super large programmable FPGA, real time multitask control technology and hardware interpolation technology, ensuring a high stability during the operation;
  • With reasonable process structure, cooperating with all photovoltaic isolation control, and featuring powerful anti-interference performance;
  • With 64M SDRAM;
  • With 64M Nand FLASH ROM (data storage, 50M can be simulated as USB disk);
  • Support USB1.1 equipment interface;
  • Support USB host-port interface (capable of reading USB disk);
  • Support TCP/IP network interface;
  • Four-channel stepper/servo motor pulse photovoltaic isolation output, maximum frequency 2MHz;
  • Frequency error of pulse output is less than 0.1%;
  • Pulse output can be single-pulse (pulse + direction) or double-pulse (pulse+ pulse) mode;
  • Any 2-4 axes linear interpolation;
  • Linear acceleration/deceleration;
  • Stepper motor or servo motor is provided. High micro-stepping driver is used, with high precision and stable operation, capable of reading real-time logic position, actual position, and driving speed during the operation;
  • RS232 (±15KV electrostatic protection);
  • Capable of programming on-line with only a serial port cable and a USB cable; no coder is needed;
  • Capable of connecting external keyboard;
  • With buzzer alarm;
  • 10.4 inch color LCD display, with user-friendly and easy-to-use operating interface.

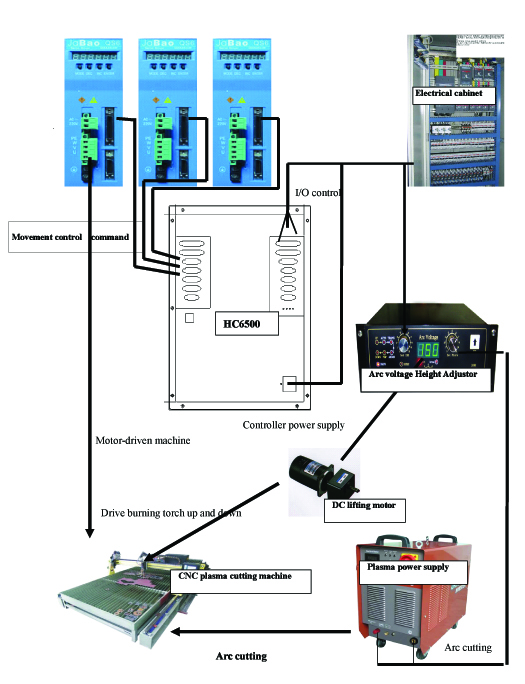

  • Gantry type plasma/flame cnc cutting machine
