QS7AA010M is a new generation of general-purpose servo motor driver, which is optimized and improved on the basis of QS6 series servo driver. Adhering to the series QS6 series servo driver excellent quality, more stable and more convenient. More mature and stable, rich and complete information. The servo drivers add to 485 new communication functions, more convenient and reliable connection with the host computer or controller software.

£210.00

Prices are NOT inclusive of VAT

Download Manual

  • Fully retain the advantages characteristics of QS6 series servo driver.
  • AC sine wave control, torque smoothly and without pulsation.
  • 2500 ppr incremental photoelectric encoder, high positioning accuracy, rotary positioning accuracy up 1/10000R.
  • Speed ratio up to 1:5000, from low speed to high speed torque characteristics are stable.
  • High-speed arithmetic processing FPGA, maximum motor speed up to 5000RPM.
  • A rich complete set of parameters that can be configured to run different operating modes, so meet different demand.
  • Position, speed, torque control mode, using widely.
  • Adopt intelligent space vector control algorithm (SVPWM), could produce greater torque and less noise.
  • Up to three times the overload design, with a load capacity greater.
  • Perfect protection: over current, overvoltage, overheating and encoder failure, etc.
  • Perfect condition monitoring functions, such as the position error, motor speed, feedback pulse, command pulse and so on.

QS7AA010M-size-5

Input Voltage

AC220V -15%~+10%

Driver Current

10A

Matching Motor

≤400W Low-inertia Motor

Using Temperature

Work:45℃  Storage:-40℃~55℃

Relative Humidity

40%~80% with no condensation

Atmosphere

86-106kpa

Control Mode

①Position control ②JOG control ③Speed control ④Torque control ⑤Position and speed control ⑥Inside pulse control ⑦Electric tool carrier control

Pulse Command

①Pulse+ Direction ②CW + CCW Pulse ③ Two-phase AB orthogonal pulses

Control Precision

0.01%

Response Frequency

≤200Hz

Pulse Frequency

≤500kHz

Speed Ratio

1:5000

Regenerative Brake

Internally Installed

Electronic Gear

1/30000~30000/1

Overload Capacity

≤300%

Feedback Pulse

2500p/r, Frequency division can be set arbitrary within 0-128

Display Function

Motor speed, motor current, motor torque, motor position, the position deviation, the number of command pulses, the pulse frequency, the straight-line speed, input and output diagnostic

Protection Function

Over speed, over current, overvoltage, under voltage, overload, super bad, encoder fault, the temperature is too high, the internal chip failure, module failure

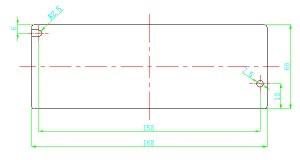

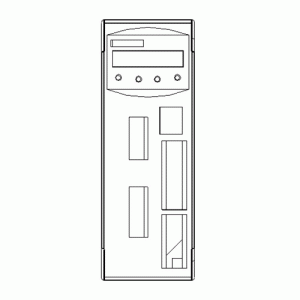

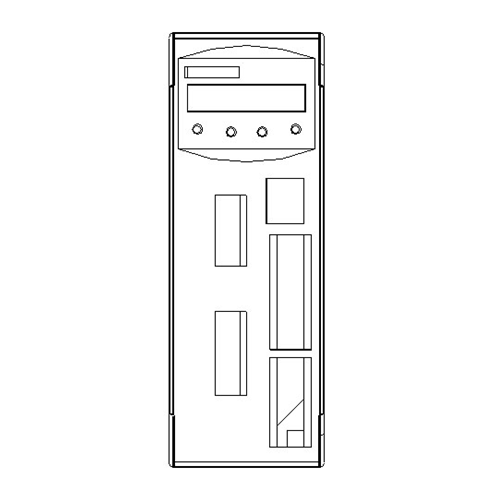

QS7AA010M-size-1

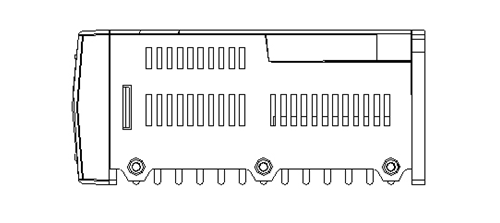

QS7AA010M-size-2

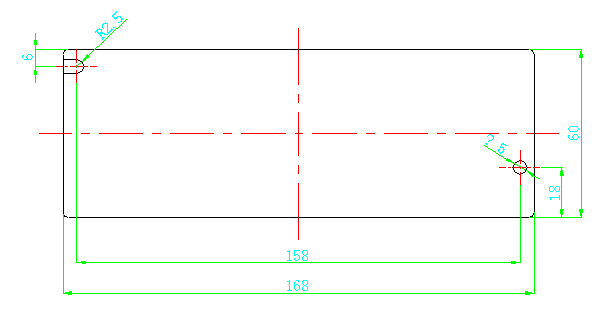

QS7AA010M-size-3

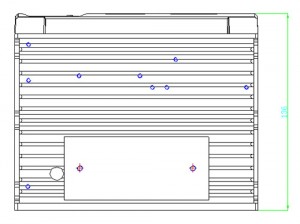

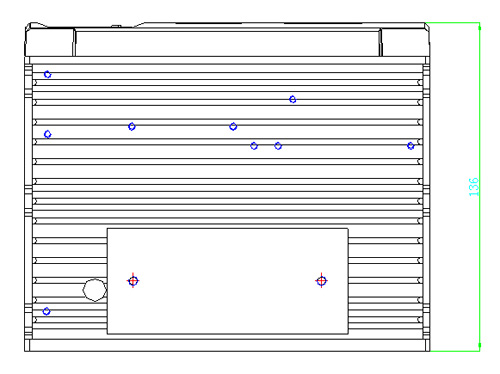

QS7AA010M-size-4
